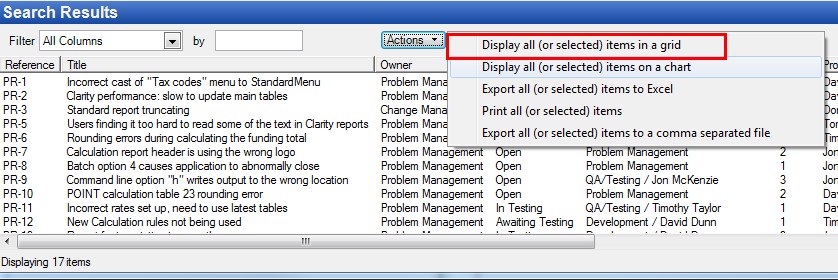

The Actions drop down button on the Item List gives the option of displaying the items listed on a grid









The Grid Window lists items, in the same way that the standard Item List does, but provides more functionality for filtering, grouping sorting, arranging.

Clicking an item will open the Item Details window for that item.

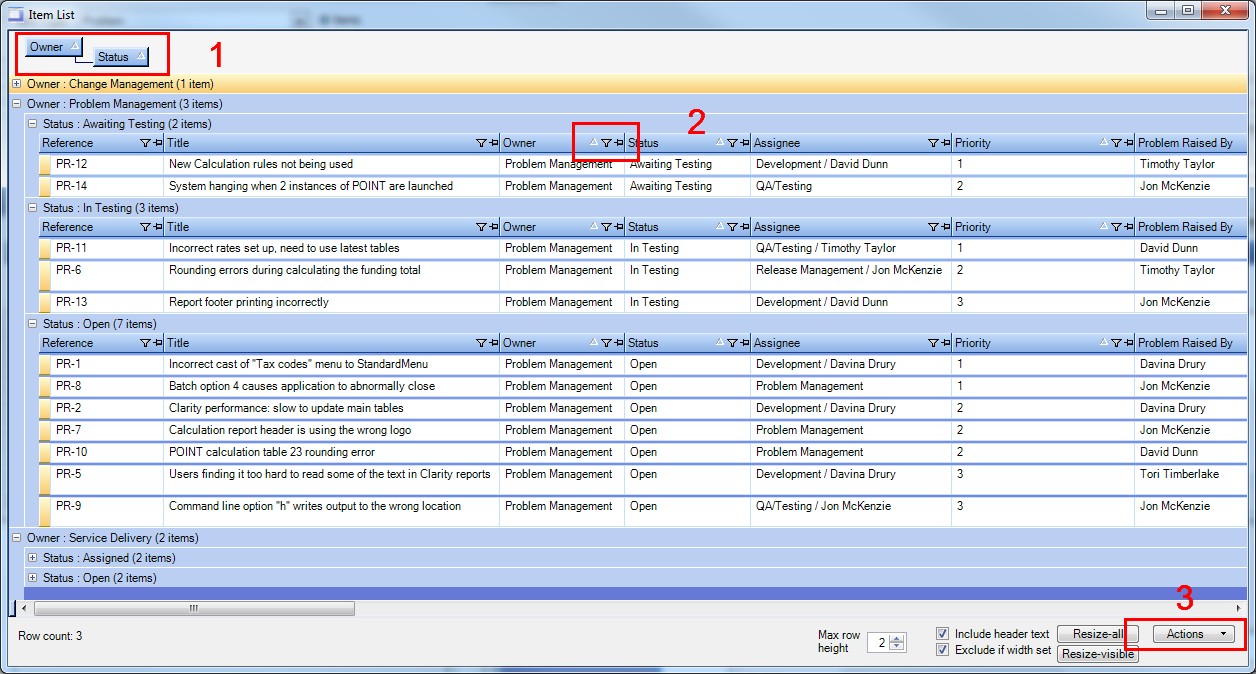

1 Column Grouping



By dragging a column header onto the header bar the items will be grouped by that value.

Dragging multiple columns will give sub groups etc





2 Column Actions



The icons on the column header provide standard Excel Filter style sorting, filtering and pinning.

Click-and-holding the column header allows column re-ordering.





3 Actions



Allow you do :

•Print the Grid

•Show or Hide columns

•Export the list to Excel with the current grouping / filtering / layout

•Export the list back to a standard Item List

•Expand all the groups
