<< Click to Display Table of Contents >> Navigation:  Using Cimera > How Lists of Items are Displayed > Grid

The Grid lists items, in the same way that the standard Item List does, but provides more functionality for filtering, grouping sorting, arranging.



The grid may be presented in its own window or as a tab in the Query Results pane (see Query Window)



Clicking an item will open the Item Details window for that item, unless the grid is displaying results from a Reporting DB Query.





1 Column Grouping



By dragging a column header onto the header bar the items will be grouped by that value.

Dragging multiple columns will give sub groups etc





2 Column Actions



The icons on the column header provide standard Excel Filter style sorting, filtering and pinning.

Click-and-dragging the column header allows column re-ordering.



3 Actions

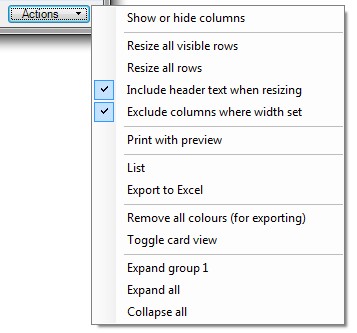

The Actions button provides access to a sub-menu:





Show or hide columns



Select which columns are displayed



Resize all visible rows



Resize columns to fit data on all rows that are visible



Resize all rows



Resize columns to fit data on all rows regardless of whether they are visible or not



Include header text when resizing



Whether to include or ignore the width of the column header text when resizing



Print with preview



Print grid with option to select columns and preview before printing



List



Open a new window with a Cimera list containing the items



Export to Excel



Export the grid to a .xls (Excel 97-2003) file and open in Excel. Any grouping will be preserved and



Remove all colours (for exporting)



Remove any cell colouring



Toggle card view



Change to / from card view mode:





Expand group 1



Expand the first group (in the example - Owner)



Expand all



Expand all groups (in the example - Owner and Status)



Collapse all



Collapse all groups
